SKU: 08B-1-BB-NO11-RENOLD
Renold Blue Box 08B-1-NO11 BS Simplex Cottered Connecting Link 1/2 inch Pitch
- Regular price
- $9.83 ex VAT
- Sale price
- $9.83
- Regular price
-
In stock
Quantity Price Breaks
2
$8.75
5
$8.26
10
$8.16
29
$8.06
49
$7.96
75
$7.86
100
$7.37
200
$7.27
250
$7.18
500
$7.08
1000
$6.88
SKU:
08B-1-BB-NO11-RENOLD
Renold Blue Box 08B-1-NO11 BS Simplex Cottered Connecting Link 1/2 inch Pitch
- Regular price
- $9.83 ex VAT
- Sale price
- $9.83
- Regular price
-
Description

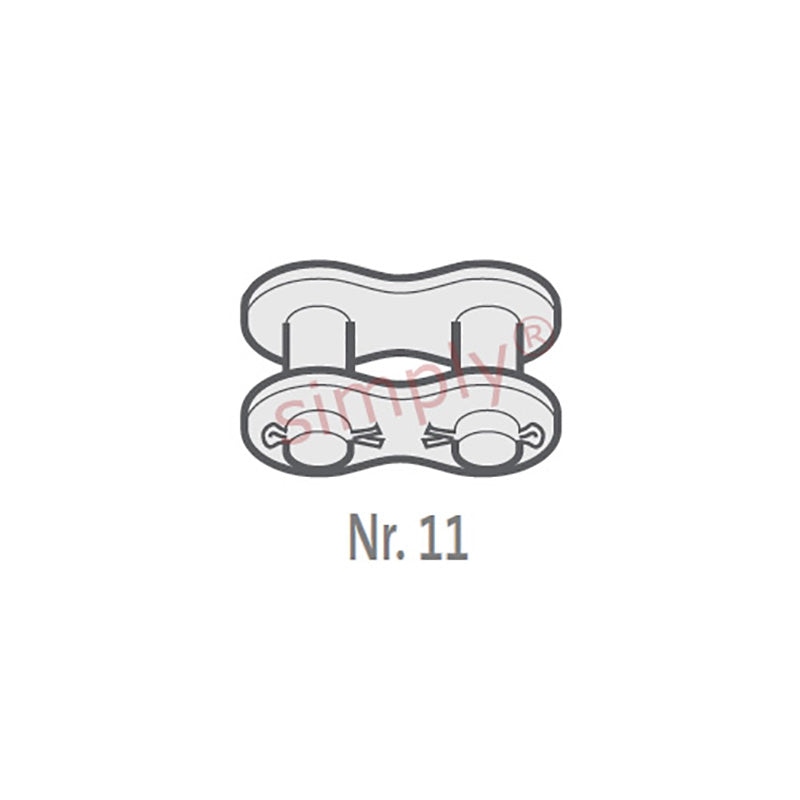

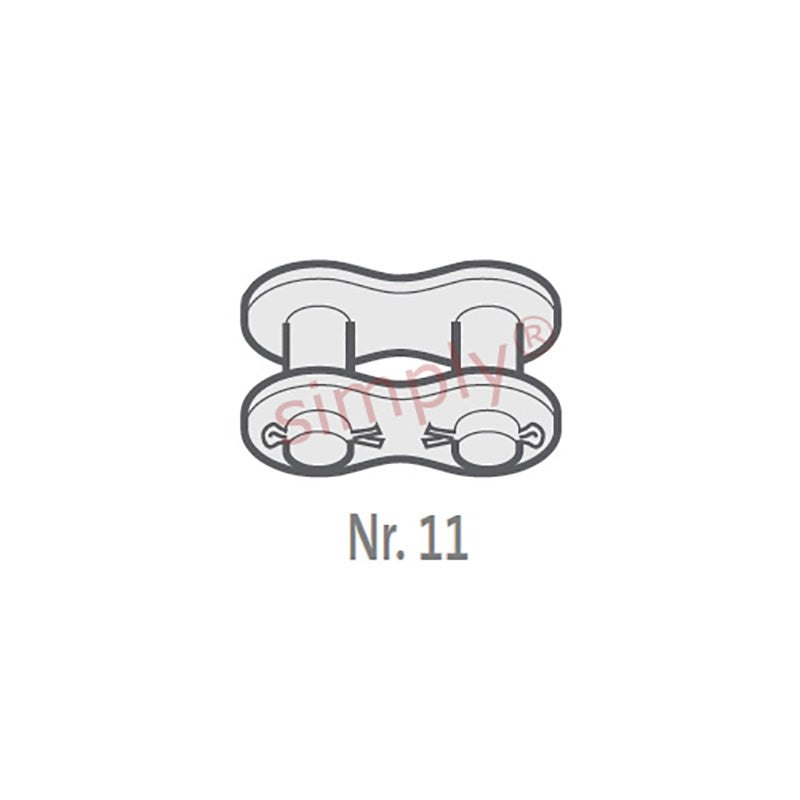

| Renold No. 11 European (BS) Simplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 7.75mm |
| Roller Diameter max (C) | = | 8.51mm |
| Plate Height max (D) | = | 11.7mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 4.45mm |
| Pin Length max (H1) | = | 16.5mm |
| Connecting Link Extension max (J) | = | 2mm |
| ISO606 Tensile Strength min | = | 17800 N |
| Weight | = | 0.003kg/m |
