SKU: 081-1-NO26-SYN-RENOLD
Renold Synergy 081-1-NO26 BS Simplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
- Regular price
- $10.22 ex VAT
- Sale price
- $10.22
- Regular price
-
In stock
Quantity Price Breaks
2
$9.10
5
$8.58
10
$8.48
29
$8.38
49
$8.28
75
$8.18
100
$7.67
200
$7.56
250
$7.46
500
$7.36
1000
$7.15
SKU:
081-1-NO26-SYN-RENOLD
Renold Synergy 081-1-NO26 BS Simplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
- Regular price
- $10.22 ex VAT
- Sale price
- $10.22
- Regular price
-
Description

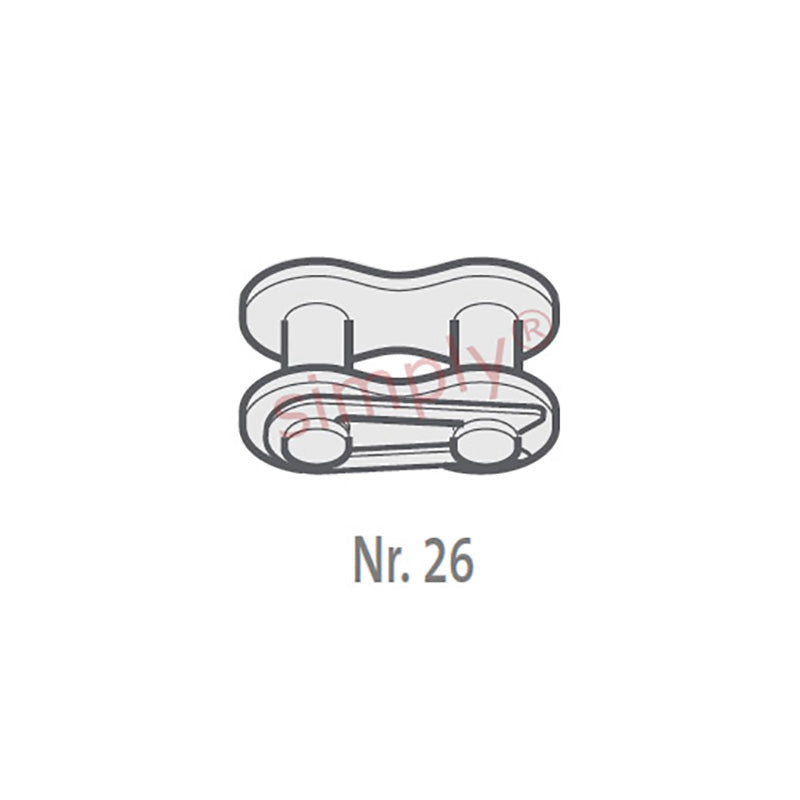

| Renold No. 26 European (BS) Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 3.3mm |
| Roller Diameter max (C) | = | 7.75mm |
| Plate Height max (D) | = | 9.9mm |
| Plate Width Inner max (E) | = | 1mm |
| Plate Width Outer max (F) | = | 1mm |
| Pin Diameter max (G) | = | 3.66mm |
| Pin Length max (H1) | = | 10.2mm |
| Connecting Link Extension max (J) | = | 1.5mm |
| ISO606 Tensile Strength min | = | 8000 N |
| Weight | = | 0.003kg/m |
