SKU: 06B-2-BB-NO12-RENOLD
Renold Blue Box 06B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 3/8 inch Pitch
- Regular price
- $24.44 ex VAT
- Sale price
- $24.44
- Regular price
-
In stock
Quantity Price Breaks
2
$21.75
5
$20.53
10
$20.29
29
$20.04
49
$19.80
75
$19.55
100
$18.33
200
$18.09
250
$17.84
500
$17.60
1000
$17.11
SKU:
06B-2-BB-NO12-RENOLD
Renold Blue Box 06B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 3/8 inch Pitch
- Regular price
- $24.44 ex VAT
- Sale price
- $24.44
- Regular price
-
Description

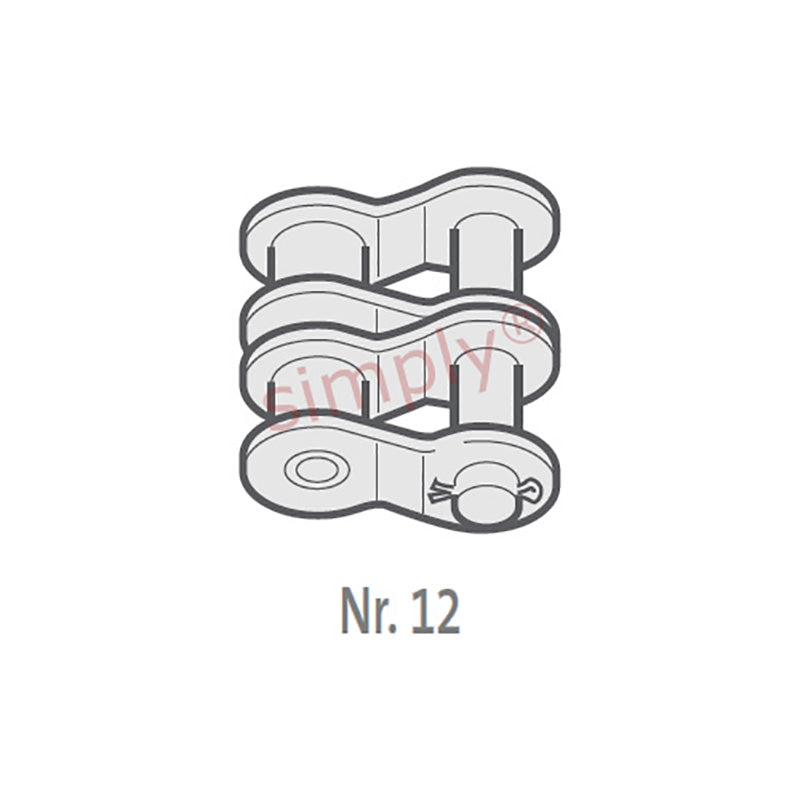

| Renold No. 12 European (BS) Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 0.375 inch |
| Pitch (A) | = | 9.525mm |
| Inside Width min (B) | = | 5.72mm |
| Roller Diameter max (C) | = | 6.35mm |
| Plate Height max (D) | = | 8.2mm |
| Plate Width Inner max (E) | = | 1.29mm |
| Plate Width Outer max (F) | = | 1.04mm |
| Pin Diameter max (G) | = | 3.28mm |
| Pin Length max (H1) | = | 23mm |
| Connecting Link Extension max (J) | = | 1.3mm |
| ISO606 Tensile Strength min | = | 16900 N |
| Weight | = | 0.002kg/m |
