SKU: 06B-1-SD-NO30-RENOLD
Renold SD 06B-1-NO30 BS Simplex Chain Double Cranked Link 3/8 inch Pitch
- Regular price
- $9.26 ex VAT
- Sale price
- $9.26
- Regular price
-
In stock
Quantity Price Breaks
2
$8.24
5
$7.78
10
$7.69
29
$7.59
49
$7.50
75
$7.41
100
$6.95
200
$6.85
250
$6.76
500
$6.67
1000
$6.48
SKU:
06B-1-SD-NO30-RENOLD
Renold SD 06B-1-NO30 BS Simplex Chain Double Cranked Link 3/8 inch Pitch
- Regular price
- $9.26 ex VAT
- Sale price
- $9.26
- Regular price
-
Description

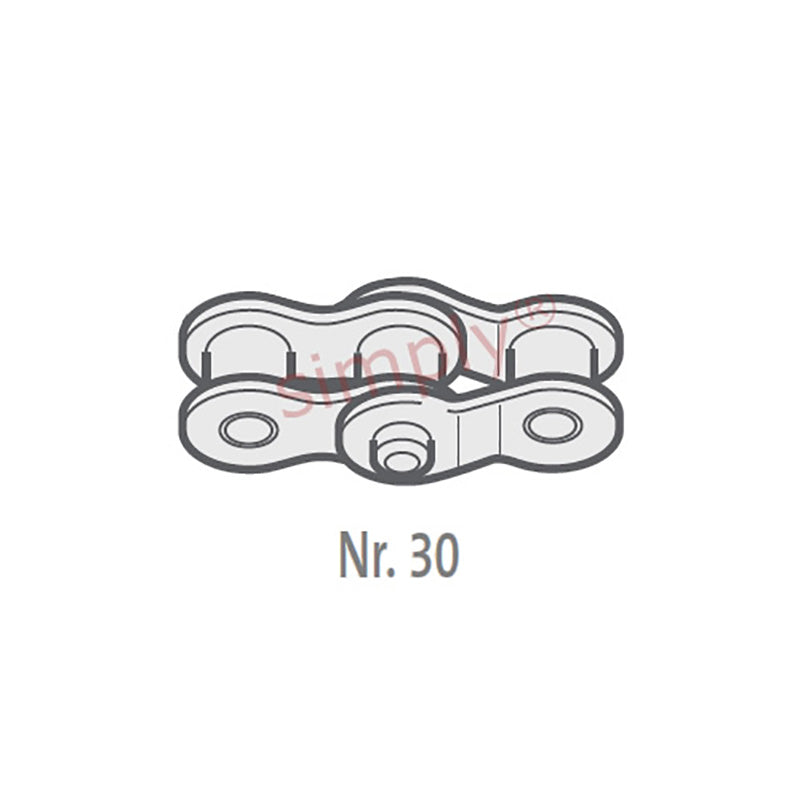

| Renold No. 30 European (BS) Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
Technical
| Pitch (A) | = | 0.375 inch |
| Pitch (A) | = | 9.525mm |
| Inside Width min (B) | = | 5.72mm |
| Roller Diameter max (C) | = | 6.35mm |
| Plate Height max (D) | = | 8.2mm |
| Plate Width Inner max (E) | = | 1.25mm |
| Plate Width Outer max (F) | = | 1mm |
| Pin Diameter max (G) | = | 3.28mm |
| Pin Length max (H1) | = | 13.2mm |
| Connecting Link Extension max (J) | = | 1mm |
| ISO606 Tensile Strength min | = | 8900 N |
| Weight | = | 0.04kg/m |
