SKU: 0.875x1.5x0.25_TB_NAK

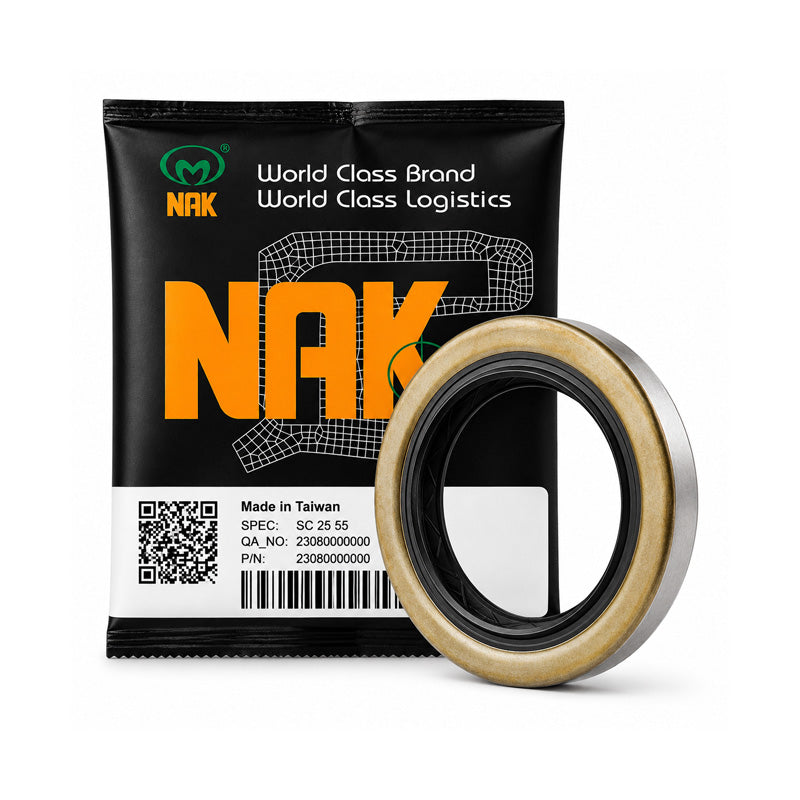

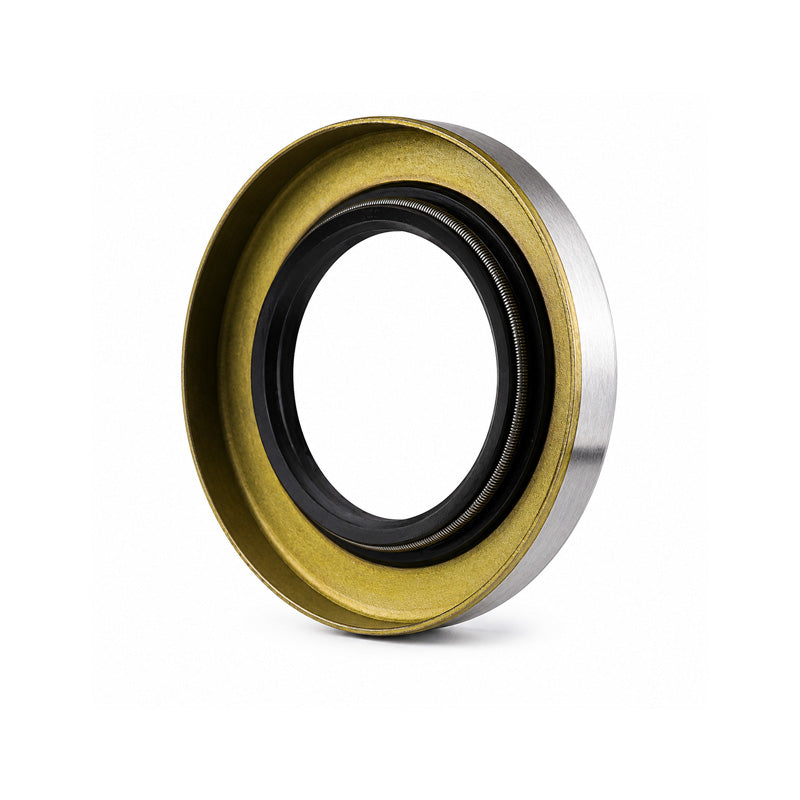

NAK 0.875x1.5x0.25 inch Metal Cased Nitrile Rubber Double Lip Rotary Shaft Oil Seal with Garter Spring TB
- Regular price
- $8.88 ex VAT
- Sale price
- $8.88
- Regular price
-
Quantity Price Breaks
NAK 0.875x1.5x0.25 inch Metal Cased Nitrile Rubber Double Lip Rotary Shaft Oil Seal with Garter Spring TB
- Regular price
- $8.88 ex VAT
- Sale price
- $8.88
- Regular price
-
Description
NAK TB Nitrile Oil Seals: Oil seals are used in a variety of different applications in which a rotating shaft is lubricated by oil or grease. They are engineered to facilitate the smooth operation of your equipment, serving as a barrier to prevent the leakage of oils and greases while also keeping foreign substances from entering. TB type seals (Also commonly called R6 seals) are commonly used oil seals, particularly in larger shaft sizes or when a smaller shaft requires extra strength. This is due to the metal-cased outside diameter which has a very stable construction and offers a better-protected sealing member in comparison to the open-backed style. The TB type feature a sealing nitrile rubber lip on the inside diameter as well as an external dust lip. The TB types feature a garter spring which allows some give to prevent a build-up of friction. (Seals under 5mm width may not always feature a spring.)
Benefits: Excellent wear resistance, good running properties, high resistance to chemicals and petroleum-based fuels including petrol, diesel and LPG.
Technical
| --- | = | Dimensions |
| Shaft Size not Inside Diameter (d) | = | 0.875 inch |
| Outside Diameter (D) | = | 1.5 inch |
| Width (b) | = | 0.25 inch |
| --- | = | Material |
| Material | = | Nitrile Rubber |
| Spring Material | = | Carbon Steel |
| = | Colour | |
| Black | = | --- |
| Weights | = | Weight |
| 0.01 kg | = | N/A |
