SKU: 0.56x1.12x0.25_SC_VI

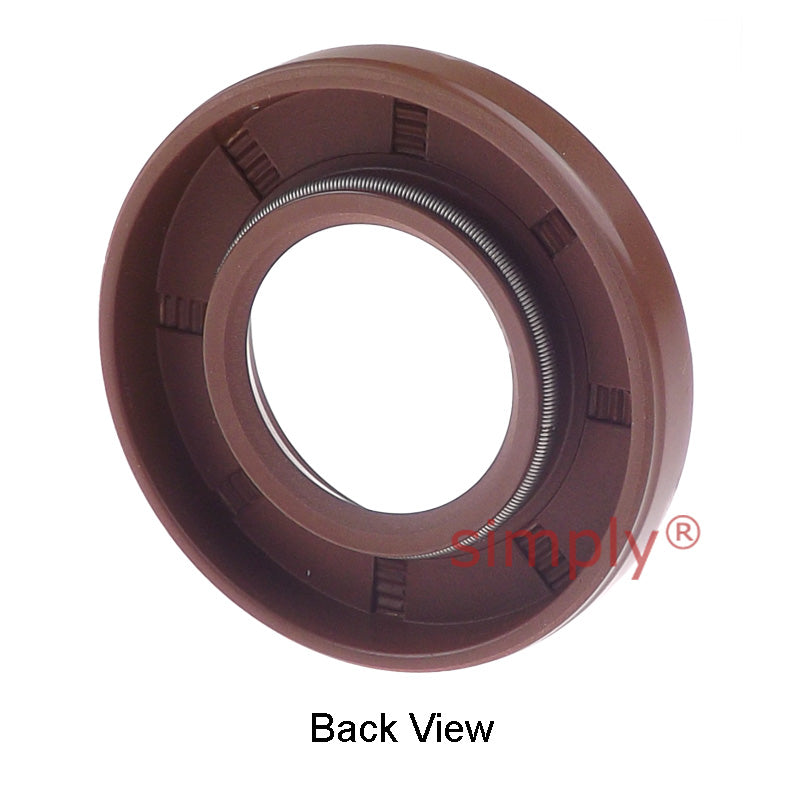

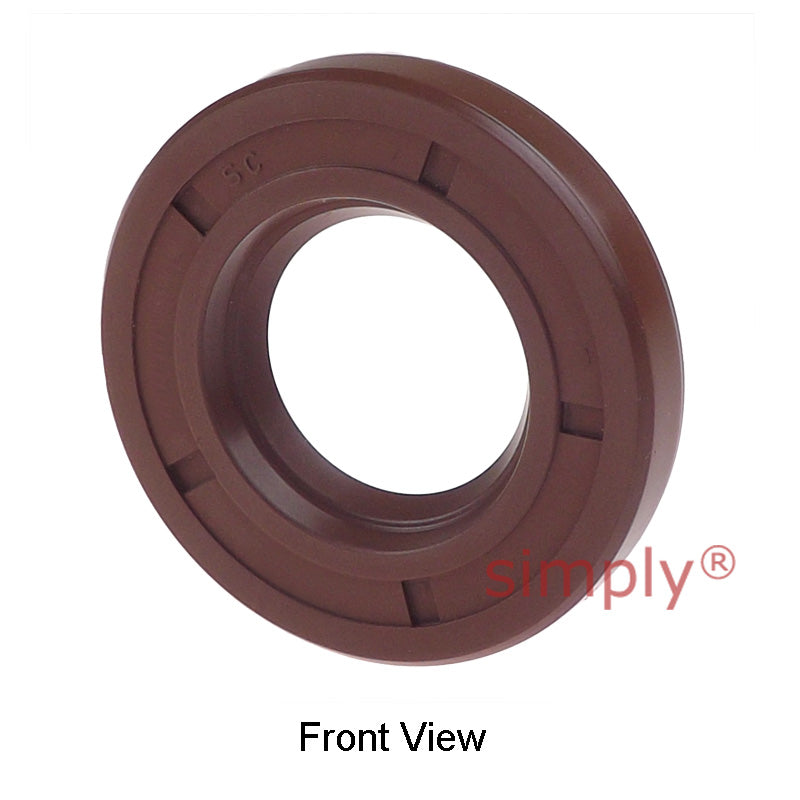

0.56x1.12x0.25 inch FKM Rubber Imperial Single Lip Rotary Shaft Oil Seal with Garter Spring
- Regular price
- $15.56 ex VAT
- Sale price
- $15.56
- Regular price
-
Quantity Price Breaks
0.56x1.12x0.25 inch FKM Rubber Imperial Single Lip Rotary Shaft Oil Seal with Garter Spring
- Regular price
- $15.56 ex VAT
- Sale price
- $15.56
- Regular price
-
Description
|
FKM Rubber Oil Seals: Characterized by their reddish brown colour and stainless steel garter springs (dependent on manufacturer they are sometimes a dull gray colour).
They are well known for their excellent chemical and heat resistance up to 200 Deg celsius and to 260 Deg celsius
for shorter periods down to -30 Deg celsius without affecting their elastic properties as a rubber. Resistance to common salt makes
them an ideal marine solution and the great range of substances to which they are resistant like Aliphatic hydrocarbons,vegetable oils and fats as well as petroleum oils and greases, Chlorinated solvents, Acids and chemical agents, Ozone, Petroleum, Diesel etc make them a very versatile seal choice |
Technical
| Shaft Size not Inside Diameter (d) | = | 14.22mm = 0.56 inch |
| Outside Diameter (D) | = | 28.45mm = 1.12 inch |
| Width (b) | = | 6.35mm = 0.25 (1/4) inch |
