SKU: 6018NR-MB

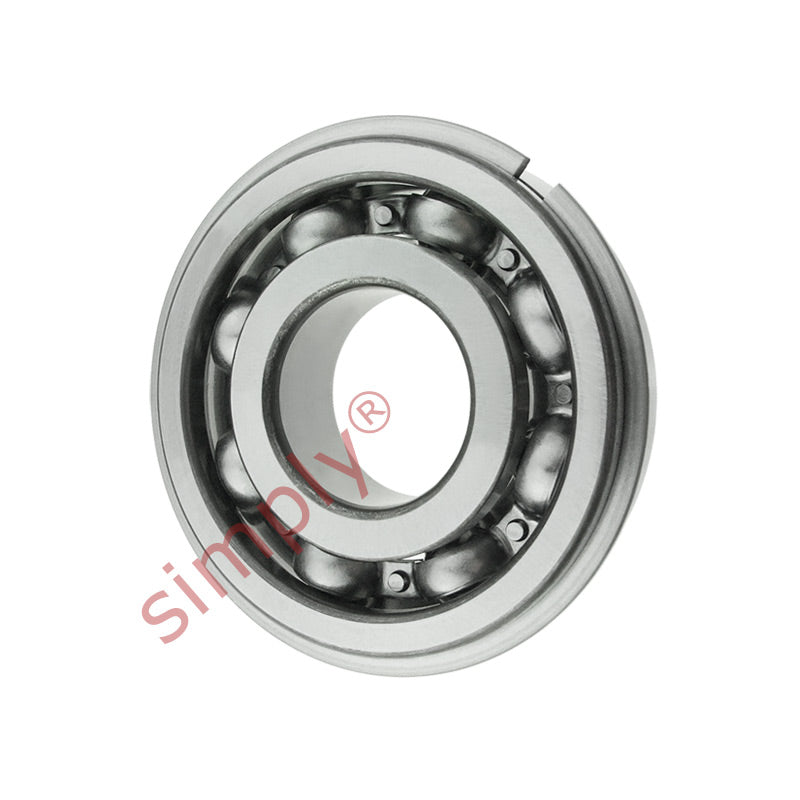

6018NR Deep Groove Ball Bearing with Snap Ring 90x140x24mm
- Regular price
- $329.95 ex VAT
- Sale price
- $329.95
- Regular price
-
Not in stock
Quantity Price Breaks
10
$293.66
19
$277.16
29
$273.86
39
$270.56
49
$267.26
74
$263.96
99
$247.46
199
$244.16
249
$240.86
499
$237.56
999
$230.97
SKU:
6018NR-MB
6018NR Deep Groove Ball Bearing with Snap Ring 90x140x24mm
- Regular price
- $329.95 ex VAT
- Sale price
- $329.95
- Regular price
-
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Technical
| d | = | 90mm |
| D | = | 140mm |
| B | = | 24mm |
| Dyamic load C | = | 60.5 kN |
| Static load Co | = | 50 kN |
| Fatigue load limit Pu | = | 1.96 kN |
| Reference speed | = | 10000 rpm |
| Limiting speed | = | 6300 rpm |
| Mass | = | 1.1 kg |
| d1 | = | 105mm |
| d2 | = | 124mm |
| D2 | = | 129mm |
| r1r2 min | = | 1.5mm |
| da min | = | 97 |
